Description
Technical Data | ||||||
Dia. of Rotor | RPM | CAP.(TPH) | Feed Size (mm.) | Motor (HP) | Weight in Kg. (Approx.) | |
---|---|---|---|---|---|---|
LHSI 800 | Ø800mm/Ø32″ | 900 | 50-60 | -65 | 75 | 7500 |
LHSI 1000 | Ø1000mm/Ø40″ | 900 | 80-90 | -90 | 100 | 10500 |
Call Us: +91 987 334 5000
lakshmiengg54@gmail.com
Mon-Sat: 9 AM- 6 PM
Sunday - Closed

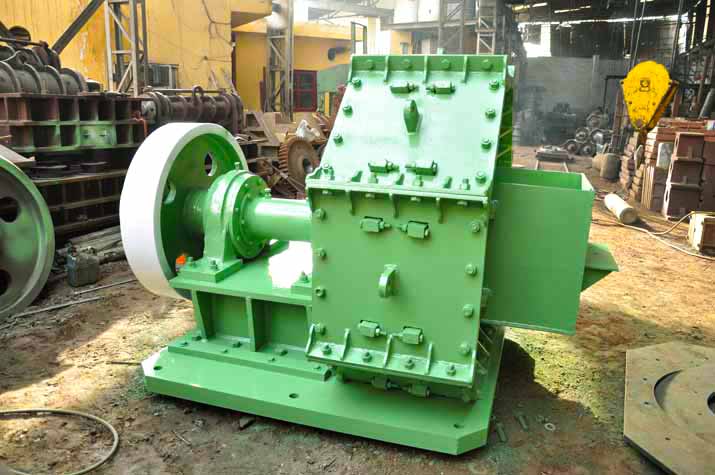

Lakshmi Rotopactor machine is the ultimate solution against flakiness. It is a rotary crusher consisting of an impeller (rotor) rotating at 1000-1200 r.p.m. inside a steel fabricated body lined with high grade Austentic manganese steel breaker liners. LE Rotopactors are used in the secondary or tertiary stage of a crushing plant. The output of the machine is absolutely cubical which finds great use in the construction sector.
Salient Features:
– High throughput capacity
– A variety of tooth profiles available to suit specific requirements
– High grade casted rollers
– Manganese steel casted liners and teeth
– A properly machined shaft assembly and two heavy bearings
– Cubicle product with minimal fines
Technical Data | ||||||
Dia. of Rotor | RPM | CAP.(TPH) | Feed Size (mm.) | Motor (HP) | Weight in Kg. (Approx.) | |
---|---|---|---|---|---|---|
LHSI 800 | Ø800mm/Ø32″ | 900 | 50-60 | -65 | 75 | 7500 |
LHSI 1000 | Ø1000mm/Ø40″ | 900 | 80-90 | -90 | 100 | 10500 |
